What Is the Sheet Metal Fabrication Process?

A flat sheet becomes a production-ready enclosure, bracket, panel, cabinet, or structural component only when every operation is planned around the next one. When buyers ask, “what is sheet metal fabrication process,” they are usually asking more than how metal is cut and bent. They need to understand how design, material, machinery, handling, quality control, and finishing work together to deliver a repeatable part at the required cost.

For a manufacturer, sheet metal fabrication is both a technical process and a production system. The right sequence can reduce setups, avoid material damage, improve dimensional consistency, and shorten lead times. The wrong sequence can create rework, bottlenecks, and unnecessary dependence on manual handling.

What Is the Sheet Metal Fabrication Process?

The sheet metal fabrication process is the controlled conversion of metal sheet into finished components through cutting, punching, forming, joining, finishing, and inspection. Depending on the product, a part may move through only two operations, such as laser cutting and press brake bending, or through a fully integrated line with automatic loading, panel bending, hardware insertion, robotic welding, deburring, and warehouse management.

Common fabricated products include electrical cabinets, HVAC components, machine guards, agricultural equipment parts, retail fixtures, elevator panels, furniture, automotive subassemblies, and architectural elements. Although these products look different, they are governed by the same production questions: Which material is suitable? What tolerances are required? What process provides the needed volume and finish? How can the workflow remain stable as demand changes?

The Process Starts Before Material Reaches the Machine

Fabrication performance is largely determined during engineering. A 3D model or 2D drawing is reviewed for dimensions, bend radii, holes, slots, fastener locations, weld access, tolerances, and cosmetic surfaces. The design is then converted into a flat pattern, accounting for bend allowance, bend deduction, grain direction, and springback.

This stage is where manufacturability decisions should be made. A tight inside radius may not be practical for the selected material thickness. Holes placed too close to a bend can distort during forming. A design with numerous unique tools may be economical in low volume but inefficient at scale. Engineers and production teams should resolve these issues before programming begins, rather than discovering them at the press brake.

Material selection follows the functional requirements of the part. Mild steel provides a cost-effective option for many structural applications. Stainless steel is chosen where corrosion resistance and appearance matter. Aluminum reduces weight and offers good corrosion resistance, but it has different forming behavior and can mark more easily. Material thickness, coating, temper, and surface condition all affect cutting parameters, bend accuracy, tooling selection, and finishing requirements.

Cutting and Punching Create the Flat Profile

Once the part is programmed, the first physical operation is commonly cutting or punching the blank. Fiber laser cutting is highly flexible for complex profiles, changing part designs, mixed production, and fine internal features. It can process a wide range of materials and thicknesses without dedicated shape tooling.

Punching machines are especially productive when parts include repeated holes, louvers, embosses, forms, or extrusions. A punch press can create certain features in one cycle that would require additional operations after laser cutting. Combi punch-laser systems combine both approaches, allowing manufacturers to punch formed features and use laser cutting for complex contours or tooling-free geometry.

The best technology depends on the part mix. Laser cutting may offer stronger flexibility for high-mix production, while punching can reduce cycle time for repeat geometries. Material utilization also matters. Efficient nesting reduces scrap, but the nesting plan must consider part stability, micro-joints, unloading, grain direction, and downstream identification.

Deburring Protects Quality Before Forming

Cut edges can carry burrs, oxide, sharp corners, or handling risks. Deburring and edge rounding are often treated as secondary tasks, but they directly influence product quality, paint adhesion, worker safety, and assembly fit.

A consistent deburring process is particularly valuable for coated parts, visible panels, and components that will be handled frequently. Automated finishing equipment can remove burrs and create controlled edge radii on both sides of a part. This improves consistency compared with manual grinding and prevents the finishing department from becoming a bottleneck when laser or punching capacity increases.

Forming Produces the Final Geometry

Bending transforms a flat blank into a three-dimensional part. Press brakes use punches and dies to create bends in a controlled sequence. They are highly versatile and can produce a broad range of profiles, including brackets, channels, boxes, and complex formed components.

Accuracy depends on more than the machine’s rated precision. Material variation, tooling condition, bend length, part orientation, operator method, backgauge positioning, and springback all affect the final result. Modern press brakes support repeatable production through CNC controls, angle measurement systems, tool libraries, offline programming, and automated tool setup options. Even so, the tooling strategy must match the part family and production volume.

Panel benders are often a strong alternative for panels, cabinets, doors, and repetitive box-type parts. They can automate clamping and bending sequences, reduce manual repositioning, and provide high repeatability. Their value is greatest where part geometry suits the machine and production demands consistent throughput. A press brake remains more flexible for many shapes, while a panel bender can deliver clear advantages in speed, ergonomics, and repeatability for the right component range.



Joining, Hardware, and Surface Finishing Complete the Part

After forming, components may require hardware insertion, welding, clinching, riveting, or adhesive bonding. PEM-style fasteners, hinges, studs, nuts, and standoffs are often inserted before or after bending based on access and part geometry. Welding may be manual, robotic, spot-based, or laser-based, depending on joint design, volume, and cosmetic requirements.

Surface finishing protects the part and defines its appearance. Typical options include powder coating, wet paint, plating, anodizing, brushing, and passivation. Fabricators should plan finishing requirements early because surface treatment can alter dimensions, create masking needs, or impose specific edge-quality standards. Stainless steel panels for visible equipment, for example, need stricter scratch prevention and material handling than hidden structural brackets.

Inspection Keeps Production Predictable

Quality control confirms that the finished part matches the drawing and performs as intended. Inspection may include first-article verification, bend-angle checks, hole position measurements, flatness inspection, weld evaluation, coating thickness checks, and final assembly fit tests.

For repeat production, process control is more effective than sorting defects at the end. Recorded machine parameters, standardized tooling, barcode-based part tracking, calibrated measurement equipment, and programmed inspection points make quality less dependent on individual memory. This is especially relevant when shifts change, materials vary, or parts move between machines and work cells.

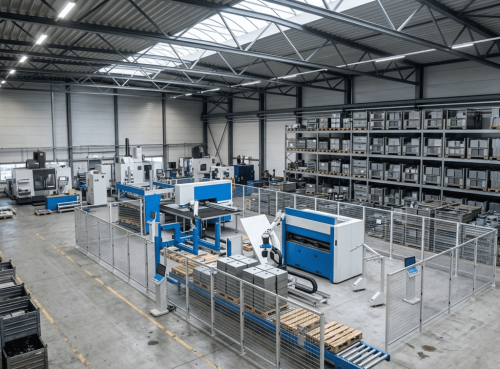

Automation Connects Individual Operations

A fabrication shop can own high-performing machines and still lose capacity between them. Manual loading, part sorting, work-in-process storage, tool searching, and unplanned transport consume time without adding value to the part.

Automation addresses these gaps through automated loading and unloading, robotic bending or welding, conveyor connections, part sorting, and vertical warehouse systems. Production software connects CAD data, nesting, machine programming, scheduling, material inventory, and job tracking. The goal is not automation for its own sake. It is to improve flow, reduce touches, protect quality, and make output less vulnerable to labor shortages.

The appropriate level of automation depends on volume, product mix, available floor space, staffing, and expected growth. A high-volume, stable part family may justify a dedicated automated cell. A job shop with frequent design changes may benefit more from flexible laser cutting, organized material storage, and offline programming before committing to a fixed line.

Selecting Equipment Around the Entire Workflow

Machine purchasing should begin with the parts that create the most pressure on production: recurring bottlenecks, high labor content, inconsistent quality, slow setups, or excessive material movement. Cycle time alone is not enough. A fast laser can overwhelm a manual bending department, and an advanced press brake can sit idle if material preparation and programming are not organized.

A practical evaluation considers annual part volumes, sheet sizes, material range, thicknesses, tolerances, required features, changeover frequency, available utilities, operator skill, and service access. It should also account for installation, training, maintenance, spare parts, and software integration. These factors determine whether a machine produces reliable capacity over years rather than impressive output during a demonstration.

For factories modernizing a single operation or building a connected production line, Italian Machinery Association approaches equipment selection as an integration decision. Premium machinery, training, installation, and after-sales support must work together if the investment is expected to improve daily production.

The most effective fabrication process is the one that fits the part, the volume, and the factory’s next stage of growth. Start with the flow of material and information through the plant, then select technology that removes the constraints holding that flow back.
