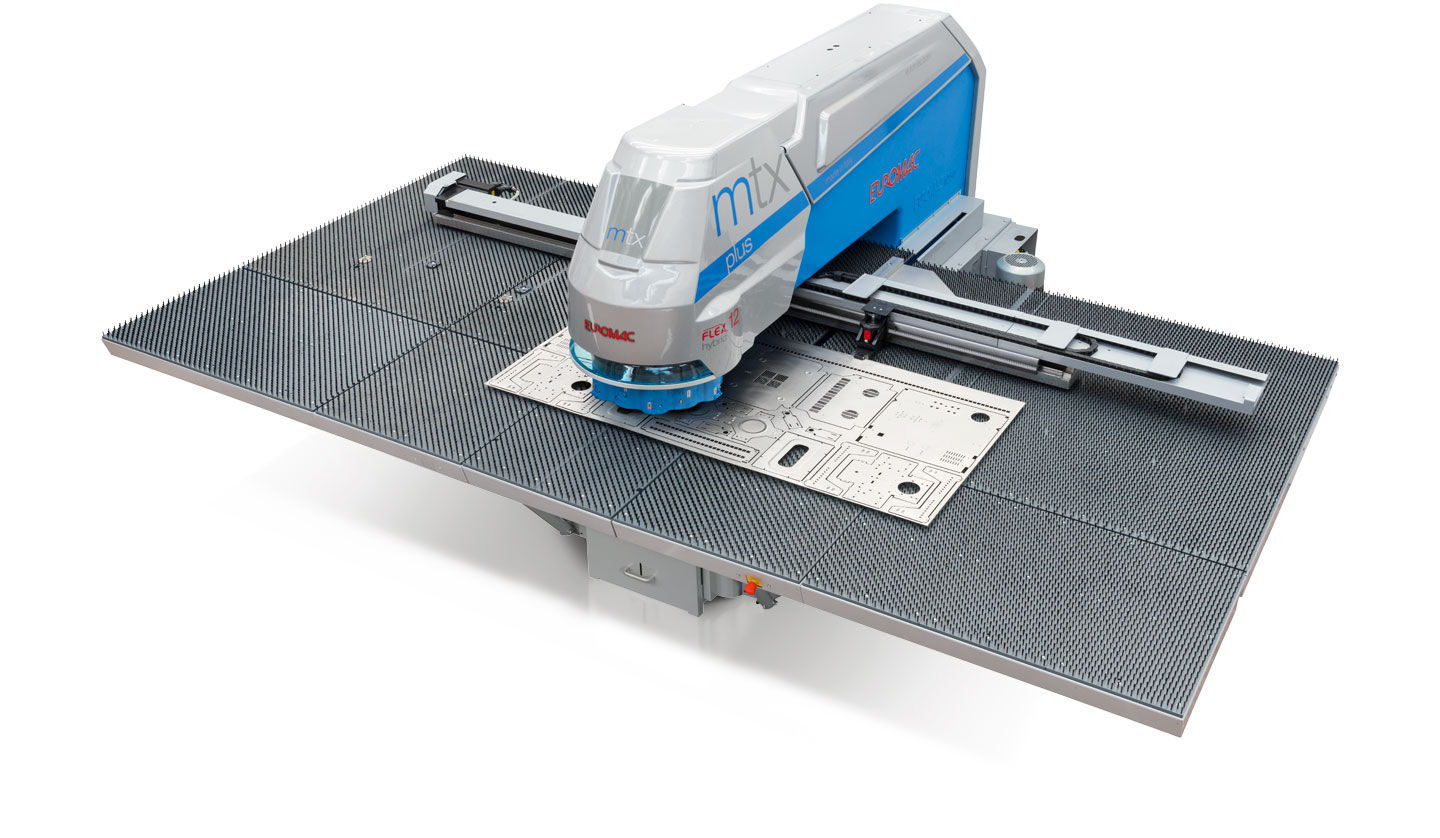

Euromac MTX Plus Flex Hybrid 12 1250/30-2250
The new frame with an increase of dimensions enables the machine to operate with higher speeds thus ensuring greater stability and working precision.
| Max. punching force (kN) | 300 | |
| Y axis with Multitool /Monoounch (mm) | ||
| Y = 1250 | 1300/1250 | |
| Y = 1500 | - | |
| X axis (mm) | 2250 | |
| Automatic repositioning in X (mm) | up to 10000 | |
| Numerically control stroke depht (mm) | from 0.1 a 31 | |
| Hydraulic servomotor controlled system | standard | |
| Position accuracy (mm) | +/- 0.05 | |
| Precision in forming repeatability (mm) | +/- 0.1 | |
| Bidirectional Autoindex stations | 3 | |
| Opening of clamps (mm) | 11 | |
| Automatic positioning clamps | 2 | |
| Max. hit rate (1/min): | ||
| Punching with 20 mm pitch | 375 | |
| Nibbling with 1 mm pitch | 1000 | |
| Marking | 2000 | |
| Thickness range (mm) | 0.6-6 | |
| Max. weight at reduced axis speed (kg) | 150* | |
| USB port | 6 | |
| Installed power (kW) | 8.5 | |
| Average consumption (kW/h) | 4.5 | |
| Approx, weight (kg) | 7000 | |
| Overall dimensions (mm) | 3980 x 3630 | |
| * for sheets of over 50 kg weight combined brush and balls tables are required | ||
