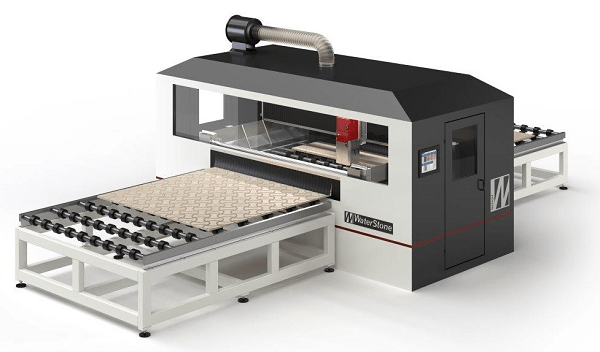

WATERJET COMPACT WSC 45
Compact and automatic hydrofinish system. High performance, equipped with a transverse axis.
The equipment is able to texture all stone materials by water only.
Electrical direct driven high pressure pump up to 2.500 Bar (36.000 Psi).
OPT 1: 45 kw with 12 lt/min (3 gal/min)
OPT 2: 110 kw with 28 lt/min (7 gal/min)
OPT 3: 160 kw with 40 lt/min (10 gal/min)
Hydro finishing, Chiselling and stripes
Electrical direct driven high pressure pump up to 2.500 Bar (36.000 Psi).
OPT 1: 45 kw with 12 lt/min (3 gal/min)
OPT 2: 110 kw with 28 lt/min (7 gal/min)
OPT 3: 160 kw with 40 lt/min (10 gal/min)
Hydro finishing, Chiselling and stripes
| NET WORKING AREA | X = 2.000 mm (6,5') Y = 2.100 mm (7') H = 200 mm (8") |
| OVERALL DIMENSIONS | 4.200 mm x 3.200 mm x h 2.200 mm (14' x 7,5' x h 7,5') |
| WEIGHT | 2.500 Kg (5.500 lb) |
| POWER | 60 HP (45 kW) |
| POWER | 150 HP (110 kW) |
| POWER | 227 HP (160 kW) |
