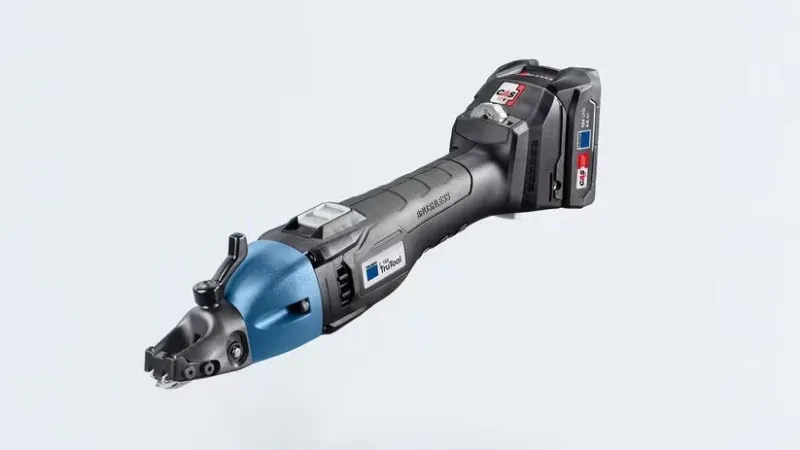

TRUMPF TruTool C 160 with chip clipper and 12V LiHD rechargeable battery

Applications of slitting shears:

• Roof and building envelope: cutting cladding materials, standard components, and flashing elements.
• HVAC (Heating, Ventilation, and Air Conditioning): production, adjustment, and installation of ventilation ducts and spiral ducts.
• Metal fabrication and mechanical engineering: blanking parts, cutting internal access hatches and openings in housings.

Handy battery-powered machine with chip clipper

The TruTool C 160 12V LiHD rechargeable battery with integrated chip clipper for two-handed operation is ideal for notching work and interior cutouts of up to 1.6 mm in mild steel and 1.2 mm in stainless steel. It enables you to clip chips at any point. The cuts are free of deformation and of high quality, and the 4.0 Ah / 12V LiHD rechargeable battery guarantees long runtimes.

Just right

Compact and practical 12V rechargeable battery. Compatible in its voltage class and with the 12V-36V recharger.

Brushless motor

Practically unlimited service life, virtually wear-free and hardly any maintenance. Battery performance per charge is also increased.

Chip cutter for two-handed operation

The chips are clipped with a three-quarter clockwise turn by means of a lever

For interior cutouts and notches

You can cut chips at any time and pull the machine out of the workpiece.

Maximum sheet thicknesses
Maximum sheet thickness, steel 400 N/mm²	1.6 mm
Maximum sheet thickness, steel 600 N/mm²	1.2 mm
Maximum sheet thickness, aluminium up to 250 N/mm²	2 mm
Spiral duct steel 400 N/mm²	4 x 0.75 mm
Radii
Smallest radius	L 48 mm / R 40 mm
General
Working speed (max.)	9 m/min
Starting hole diameter	15 mm
Voltage	12 V
Dimensions
Length	357 mm
Height	88 mm
Weight
Weight (incl. rechargeable battery)	1.6 kg
