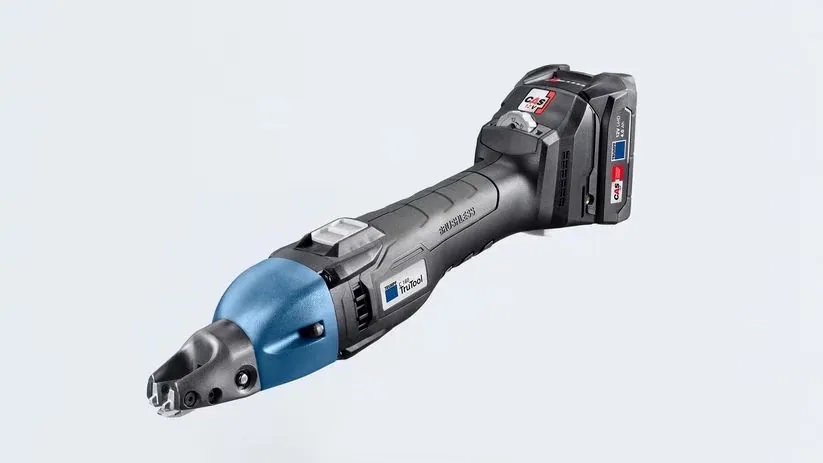

TRUMPF TruTool C 160 12V LiHD rechargeable battery
Lightweight and convenient cordless metal shears (slitting shears), designed for fast, precise, and clean cutting of metal sheets.

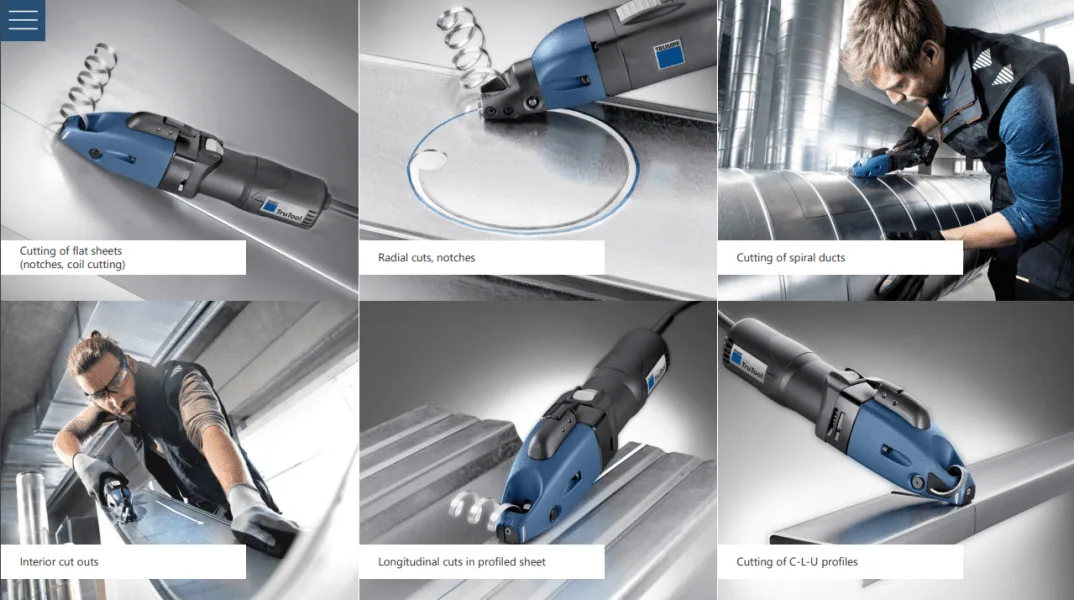

Applications of slitting shears:
- Roof and building envelope: cutting cladding materials, standard components, and flashing elements.

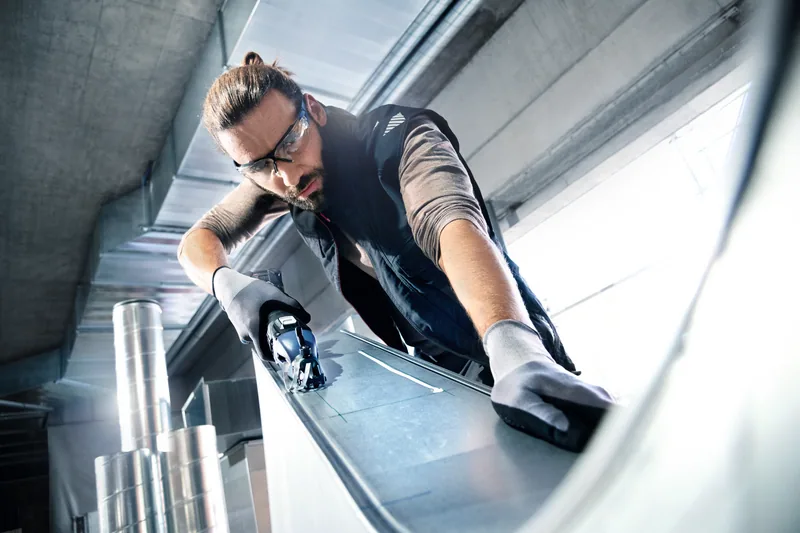

- HVAC (Heating, Ventilation, and Air Conditioning): production, adjustment, and installation of ventilation ducts and spiral ducts.
- Metal fabrication and mechanical engineering: blanking parts, cutting internal access hatches and openings in housings.
Battery machine for precise cuts

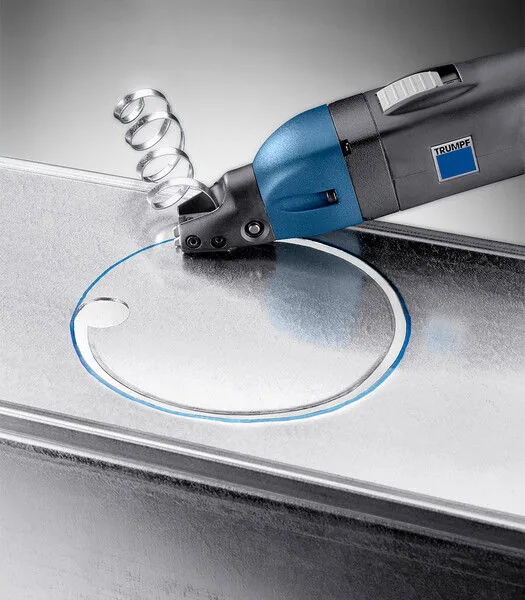

The 12V battery machine without chip clipper is particularly well-suited to cutting tasks without chip clipping during the cutting process. For example if you are cutting straight sheets to length or for curved cutting. We have different blades available to match the application. The 4.0 Ah / 12V LiHD rechargeable battery also ensures long runtimes.Just right
Compact and practical 12V rechargeable battery. Compatible in its voltage class and with the 12V-36V recharger.Brushless motor
Practically unlimited service life, virtually wear-free and hardly any maintenance. Battery performance per charge is also increased.Easy and safe operation
A soft grip ensures a secure hold and enables low-vibration operation.Ideal for trimming to length
Well-suited for straight, distortion-free cuts and C-L-U profiles.| Maximum sheet thicknesses | |
| Maximum sheet thickness, steel 400 N/mm² | 1.6 mm |
| Maximum sheet thickness, steel 600 N/mm² | 1.2 mm |
| Maximum sheet thickness, aluminium up to 250 N/mm² | 2 mm |
| Spiral duct steel 400 N/mm² | 4 x 0.75 mm |
| Radii | |
| Smallest radius | L 48 mm / R 40 mm |
| General | |
| Working speed (max.) | 9 m/min |
| Starting hole diameter | 15 mm |
| Voltage | 12 V |
| Dimensions | |
| Length | 357 mm |
| Height | 88 mm |
| Weight | |
| Weight (incl. rechargeable battery) | 1.6 kg |
