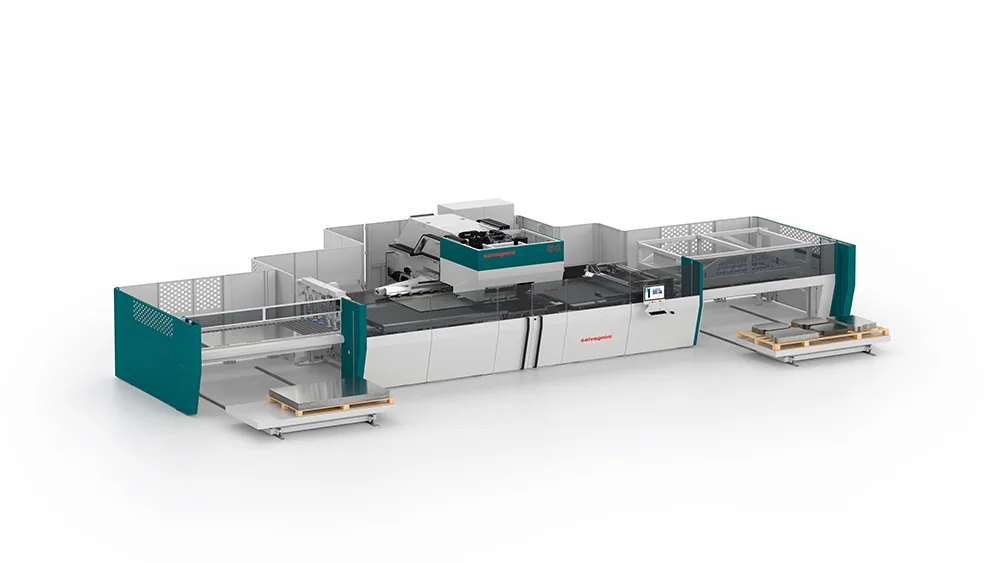

Salvagnini S4.G4-40
Combined punching-shearing center for automatic punching, forming and cutting of sheet metal into finished parts without regripping or re-machining.
Productivity, flexibility, efficiency
The Salvagnini S4 punching-shearing center combines technologies that guarantee high productivity and process efficiency.
It is a flexible, productive and fully automatic system that makes the most efficient use of material: nests are processed without gripping scrap, and waste is kept to a minimum.
The S4 is also an excellent solution for working in line with P4 panel benders. Thanks to advanced control techniques and a digital communication protocol, the machine combines fast movements with high precision and guarantees outstanding part quality.
S4: the choice of the best.
| Max. sheet size (mm) | 4064 × 1650 |
| Max. sheet diagonal (mm) | 4655 |
| Min. sheet size (mm) | 600 × 400 |
| Max. X axis speed (m/min) | 132 |
| Max. Y axis speed (m/min) | 117 |
| Speed with both axes moving (m/min) | 176 |
| Max. X axis acceleration (m/s²) | 30 |
| Max. Y axis acceleration (m/s²) | 17 |
| Max. punching thickness (no multitool), aluminium UTS 265 N/mm² (mm) | 5.0 |
| Max. punching thickness (no multitool), steel UTS 410 N/mm² (mm) | 4.0 |
| Max. punching thickness (no multitool), stainless steel UTS 610 N/mm² (mm) | 4.0 |
| Max. shearing thickness, aluminium UTS 265 N/mm² (mm) | 5.0 |
| Max. shearing thickness, steel UTS 410 N/mm² (mm) | 3.5 |
| Max. shearing thickness, stainless steel UTS 610 N/mm² (mm) | 2.0 |
| Min. material thickness (mm) | 0.5 |
| Max. number of punching stations | 27 |
| Max. number of tools | 117 |
| Lower and upper head clearance (mm) | 18 |
| Max. embossing height (mm) | 16 |
Salvagnini is an Italian manufacturer of systems for flexible sheet metal processing: punching-shearing centers, panel benders, press brakes and fiber laser systems. The S4 punching-shearing center was designed by Guido Salvagnini in 1978, and in 1979 the company presented the S4+P4 line, combining punching with automatic panel bending. Today S4 centers work at companies in 66 countries and in more than 110 sectors, from elevators and switchboards to HVAC, metal furniture and the automotive industry. Salvagnini develops solutions with low environmental impact, maximum operator safety and careful use of resources.
