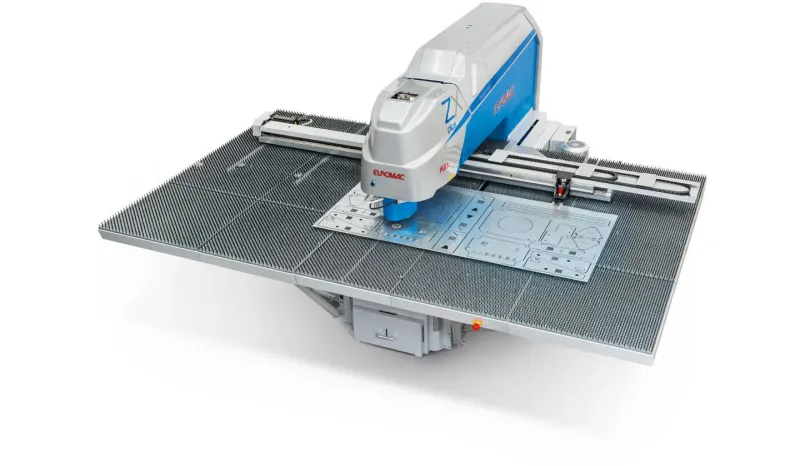

Euromac ZX Plus Flex Hybrid 1250/30-2500
ZX is a compact and versatile punching system with 360° tool rotation, allowing the use of both single tools and multitools, providing up to 10 rotating positions in one setup.
With a punching speed of up to 1000 strokes per minute and the hybrid Flex system, it offers high productivity and exceptional flexibility in manufacturing a wide range of sheet metal products.
ZX combines power, affordability, and ease of operation, enabling maximum efficiency in metalworking.
Euromac ZX Plus Flex Hybrid 1250/30-2500 is a CNC punching press with a Flex hybrid system, a working area of 1250 × 2500 mm, and a punching force of 300 kN.
With a punching speed of up to 1000 strokes per minute and the hybrid Flex system, it offers high productivity and exceptional flexibility in manufacturing a wide range of sheet metal products.
ZX combines power, affordability, and ease of operation, enabling maximum efficiency in metalworking.
Euromac ZX Plus Flex Hybrid 1250/30-2500 is a CNC punching press with a Flex hybrid system, a working area of 1250 × 2500 mm, and a punching force of 300 kN.
| Max. punching force (kN) | 300 |
| Y axis with Multitool / Monoounch (mm) | 1300 / 1250 |
| X axis (mm) | 2500 |
| Automatic repositioning in X (mm) | up to 10000 |
| Numerically control stroke depht (mm) | from 0.1 to 31 |
| Hydraulic servomotor controlled system | standard |
| Position accuracy (mm) | +/- 0.05 |
| Precision in forming repeatability (mm) | +/- 0.1 |
| Bidirectional “D” Autoindex stations | 1 |
| Opening of clamps (mm) | 11 |
| Automatic positioning clamps | 2 |
| Max. hit rate (1/min): | |
| Punching with 20 mm pitch | 375 |
| Nibbling with 1 mm pitch | 1000 |
| Marking | 2000 |
| Thickness range (mm) | 0.6-6 |
| Max. thickness (mm) with op. clamps 13 mm (for copper / aluminium) | 12.5 |
| Max. weight at reduced axis speed (kg) | 150* |
| USB port | 6 |
| Installed power (kW) | 8.5 |
| Average consumption (kW/h) | 4.5 |
| Approx, weight (kg) | 8300 |
| Overall dimensions (mm) | 4850 x 3630 |
| * for sheets of over 50 kg weight combined brush and balls tables are required | |
