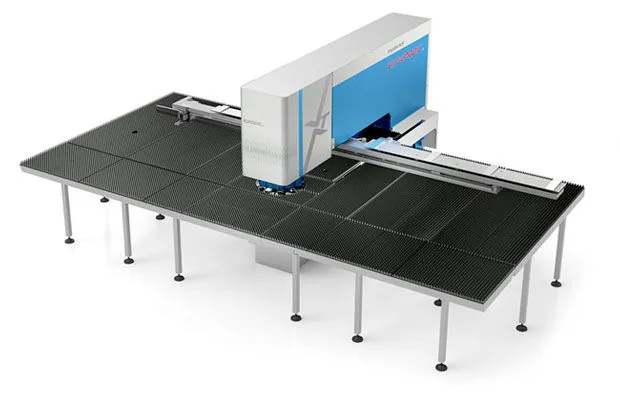

Euromac XT Flex Hybrid 12-S 1500/30-3000
The flagship model of the XT series, representing a fully equipped center for fully automated sheet metal processing.
The Euromac XT series represents high-performance sheet metal processing centers that can be configured for any production task. Each model is available in hydraulic, hybrid, or electric versions with a choice of a 6- or 12-station turret.
Three drive types to choose from
You can select the ideal balance between the power of classic hydraulics, the eco-efficient electric drive, or the patented FLEX hybrid system, combining strength and speed with electronic control.
Flexible tooling arsenal
Configurations allow up to 66 tools to be installed simultaneously, and the innovative Multi Index system enables rotation of both single tools and multitools for complex operations.
Specialized “S” versions
For processing heavy and large sheets, versions with dual Y-axis motors are available, ensuring higher speed, accuracy, and processing stability.
Scalable automation
Any XT machine can be transformed into a fully autonomous line through integration of automatic loading/unloading systems and robotic Sorting Cell units for part sorting.
Three drive types to choose from
You can select the ideal balance between the power of classic hydraulics, the eco-efficient electric drive, or the patented FLEX hybrid system, combining strength and speed with electronic control.
Flexible tooling arsenal
Configurations allow up to 66 tools to be installed simultaneously, and the innovative Multi Index system enables rotation of both single tools and multitools for complex operations.
Specialized “S” versions
For processing heavy and large sheets, versions with dual Y-axis motors are available, ensuring higher speed, accuracy, and processing stability.
Scalable automation
Any XT machine can be transformed into a fully autonomous line through integration of automatic loading/unloading systems and robotic Sorting Cell units for part sorting.
| Max. punching force (kN) | 300 |
| Y-axis with Multi-tool/Monop. (mm) | 1550 / 1500 |
| Y-axis motors | 2 |
| X-axis (mm) | 3000 |
| Automatic repositioning in X (mm) | up to 10000 |
| Punch stroke control (mm) | from 0.1 to 31 |
| Servomotor-driven hydraulic system | standard |
| Positioning accuracy (mm) | +/- 0.05 |
| Repeatability in forming (mm) | +/- 0.1 |
| Bi-directional Auto-index Stations | 3 |
| Clamp aperture (mm) | 11 |
| Std. automatic clamps. | 3 |
| Max. number of strokes (1/min): | |
| Nibbling pitch 1 mm | 1100 |
| Marking | 2000 |
| Thicknesses (mm) | 0.6 - 6.5 |
| Max. sheet metal weight at reduced axle speed (kg) | 180° |
| USB ports | 6 |
| Power required (kW) | 8.5 |
| Average power consumption (kW/h) | 5 |
| Approximate weight (kg) | 9300 |
| Dimensions (mm) | 6200 x 4600 |
Euromac — a recognized expert in developing technologies that take sheet metal processing optimization to a fundamentally new level. Following its mission to bring any partner's ambitions to life, the brand creates intelligent systems for full control and transparency of all production cycles. The entire journey from design to assembly takes place exclusively in Italy, allowing the company to combine benchmark reliability with innovations that open new opportunities for businesses worldwide.
